   Shorted Stub, Physical Length

Shorted Stub, Physical Length



[spacer]



Netlist Form

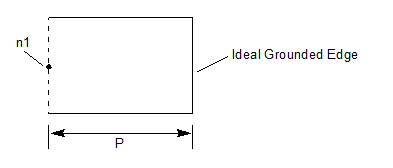

An instance of an ideal shorted stub with physical length has the following netlist syntax:

Axxx n1 Z=val K=val P=val A=val F=val COMPONENT=ideal_shorted_stub_physical

n1 is the name of the node attached to the shorted stub. The entry COMPONENT=ideal_shorted_stub_physical identifies the element as an ideal shorted stub, physical length.


Ideal Shorted Stub, Physical Length, Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

0.01

Z

Characteristic impedance

Ohm

50.0

K

Effective dielectric constant



1.0

F

Reference frequency

Hz

1.0e9

A

Attenuation constant at reference frequency

dB/m

0.0

Netlist Example

A44 Port1 P=10e-3 COMPONENT=ideal_shorted_stub_physical
