Shorted Stub, Electrical Length



[spacer]



Netlist Format

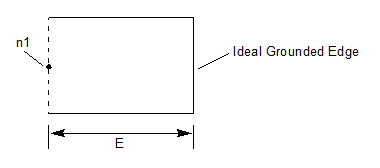

An instance of an ideal shorted stub with electrical length has the following netlist syntax:

Axxx n1 Z=val E=val A=val F=val COMPONENT=ideal_shorted_stub_electrical

n1 is the name of the node attached to the shorted stub. A reference node of ground (node 0 ) is automatically supplied, and is not shown in the netlist. The entry COMPONENT=ideal_shorted_stub_electrical identifies the element as an ideal shorted stub with electrical length.




Ideal Shorted Stub with Electrical Length, Instance Parameters

Parameter

Description

Units

Default

Z

Characteristic impedance

Ohm

50.0

E

Electrical length at reference frequency

Degree

45

A

Attenuation at reference frequency

dB/m

0.0

F

Reference frequency

Hz

1e9

Netlist Example

A44 Port1 E=45 F=1.0e9 COMPONENT=ideal_shorted_stub_electrical
