Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Suspended Stripline Elements >
   Creating a Custom Suspended Stripline Substrate

Creating a Custom Suspended Stripline Substrate

To create a suspended stripline substrate definition, open the Nexxim design icon (“Nexxim1” for example), then right-click on the Add Reference Data field. Select Add Substrate Definition from the pulldown.

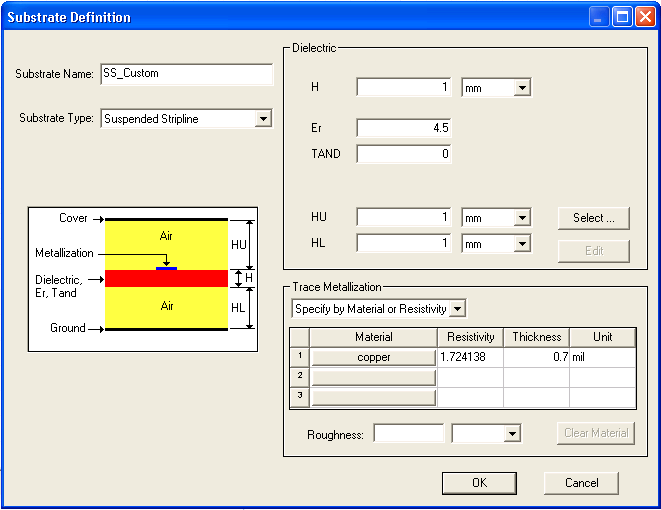

The Substrate Definition window opens. Specify the name of your new substrate (the example below uses the name “SS_Custom”):

Select Suspended Stripline as the Substrate Type. Complete the Dielectric and Metallization field information. Refer to the DSsupended Stripline (SS) Substrate help topic for guidelines on defining offset stripline substrates.

When the substrate definition is complete, click OK.

If you selected None for the global substrate type in the Choose Layout Technology dialog, the custom slotline substrate becomes the global substrate type.

When an element is instantiated , it includes a SUBSTRATE=substrate_name entry in its netlist syntax. Designer automatically inserts the global substrate_name into the internal netlist entry for the instantiated element.
