Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Slotline Elements >
   ShortedStub, Physical Length

ShortedStub, Physical Length



[spacer]



[spacer]



[spacer]

Netlist Format

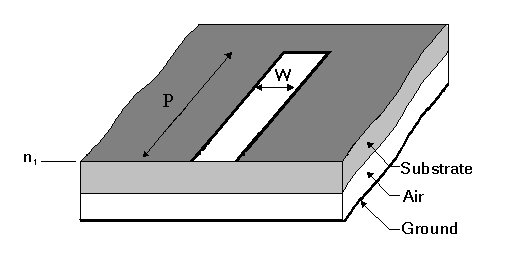

An instance of a slotline shorted stub with physical length has the following netlist syntax:

Axxx n1 [n2] [W=val] [P=val] COMPONENT=slotline_short_stub SUBSTRATE=substrate_name

n1 is node attached to the shorted stub. n2 is the optional reference node. The entry COMPONENT=slotline_short_stub identifies the element.

The SUBSTRATE=substrate_name is the slotline substrate model name selected for the design (see Selecting a Slotline Substrate for details.




Slotline Shorted Stub with Physical Length,
Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

1e-3

W

Center conductor width

Meter

.762e-3


Netlist Example

A23 Port1 0 W=.5e-003 P=0.001
+ COMPONENT=slotline_short_stub SUBSTRATE=SLOT1

where SLOT1, the selected layout technology or substrate type, has a definition such as:

.SUB SLOT1 SLOT(
+ B=0.001524 Er=4.4 TAND=0.02 H=0.5e-3 HU=2.54e-003
+ MET1=1.724137931034483 T1=2.5400e-005
+ RGH=0)
