Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Rectangular Waveguide Elements >
   Rectangular Waveguide, TE10 Mode

Rectangular Waveguide, TE10 Mode



[spacer]



[spacer]

Netlist Format

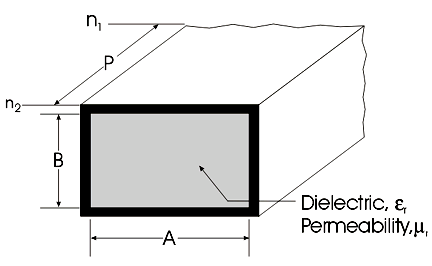

An instance of a rectangular waveguide, TE10 mode has the following netlist syntax:

Axxx n1 n2 [A=val] [B=val] [P=val] COMPONENT=rectangular_waveguide SUBSTRATE=substrate_name

n1 and n2 arethe nodes attached to the open stub. The entry COMPONENT=rectangular_waveguide identifies the element.

The SUBSTRATE=substrate_name is the rectangular waveguide substrate model name selected for the design (see Selecting a Rectangular Waveguide Substrate for details.




Rectangular Waveguide, TE10 Mode Instance Parameters

Parameter

Description

Units

Default

A

Inside width

Meter

24.13e-3

B

Inside height

Meter

11.43e-3

P

Physical length

Meter

254e-3

Netlist Example

A23 Port1 Port2 A=24.13e-003 B=11.43e-3 P=254e-3
+ COMPONENT=rectangular_waveguide SUBSTRATE=RWG1

where RWG1, the selected layout technology or substrate type, has a definition such as:

.SUB RWG1 RWG(
+ UR=0.01 ER=4.4 TAND=0.02
+ MET1=1.724137931034483 T1=2.5400e-005
+ RGH=0)

Notes

1. .The program considers only the dominant TE10 mode, which has a cut-off wavelength of kc =2a, where a is the greater inside dimension.
