Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Simulator >
Nexxim Component Models >
Offset Stripline Elements >
Transmission Line, Field Solver

Transmission Line, Field Solver

Netlist Format

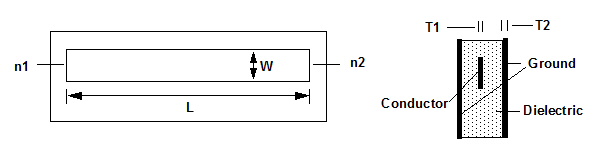

A field solver offset stripline transmission line has the following netlist syntax:

Wxxx n1 n2 0 N=1 W=val L=val FSmodel=modelname

.MATERIAL conductor METAL CONDUCTIVITY=val
.MATERIAL dielectric DIELECTRIC ER=val LOSSTANGENT=val
.SHAPE RECT1 RECTANGLE WIDTH=w HEIGHT=t1 // Conductors
.LAYERSTACK layerstack
+ LAYER=(conductor, t2) // Lower ground plane
+ LAYER=(dielectric, b) // Dielectric layer
+ LAYER=(conductor, t2) // Upper ground plane
.MODEL modelname W MODELTYPE=Fieldsolver
+ LAYERSTACK=layerstack
+ CONDUCTOR=(SHAPE=RECT1, ORIGIN=(0, 't2 + bl')

n1, and n2 are the names of the input and output nodes. The entry N=1 shows that this is a single transmission line. The names for the modelname, conductor, dielectric, and layerstack are supplied by the user.

The entry FSmodel=modelname identifies the field solver offset stripline W-model.

**Transmission Line, Field Solver Instance Parameters**
Parameter	Description	Units	Default
W	Width of conductor	Meter	1e-3
L	Physical length	Meter	1e-3
N	Number of lines for W-model . Must be 1 for transmission line.	None	1
T1	Thickness of conductors	Meter	0.001
T2	Thickness of ground planes	Meter	0.001
B	Thickness of dielectric layer	Meter	1e-3
BL	Height of conductors above lower ground plane	Meter	B/2
CONDUCTIVITY	Conductivity of conductor material		57.6e6
ER	Dielectric constant		2.2
TAND	Dielectric loss tangent		0

Note

The default values for the transmission line are the ones assigned when placing a component from the Ansoft Component library in a schematic. There are NO defaults for netlist designs; all values must be specified.

Netlist Example

W3 Port1 Port2 0 N=1 W-0.0001 L=0.002 FSmodel=OSL1

.MATERIAL cond1 METAL CONDUCTIVITY=5.8e7
.MATERIAL diel1 DIELECTRIC ER=4.4 LOSSTANGENT=0.02
.SHAPE rect1 RECTANGLE WIDTH=.002 // Conductor width W
+ HEIGHT=.001 // Conductor height T1
.LAYERSTACK offsetstripline
+ LAYER=(cond1, .001) // Bottom ground T2
+ LAYER=(diel1, .01) // Dielectric B
+ LAYER=(cond1, .001) // Top ground, T2
.MODEL OSL1 W MODELTYPE=Fieldsolver
+ LAYERSTACK=offsetstripline
+ CONDUCTOR=(SHAPE=rect1, ORIGIN=(0, '.001 + .005') // T2 + BL
+ MATERIAL=cond1, TYPE=SIGNAL)
