Rectangular Inductor

Rectangular Inductor

Netlist Format

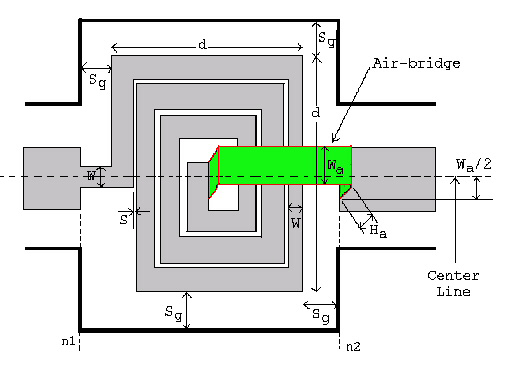

An instance of a grounded coplanar waveguide rectangular inductor has the following netlist syntax:

Axxx n1 N=val D=val W=val S=val] HA=val WA=val SG=val T=val]
RB=val COMPONENT=gcpwreci SUBSTRATE=substrate_name

n1 is the name of the node attached to the rectangular inductor. The entry COMPONENT=gcpwreci identifies the element as a grounded coplanar waveguide open stub, physical length.

The SUBSTRATE=substrate_name is the grounded coplanar waveguide substrate model name selected for the design (see Selecting a Grounded Coplanar Waveguide Substrate for details).

**Grounded Coplanar Waveguide Rectangular Inductor Instance Parameters**
Parameter	Description	Units	Default
N	Number of turns	None	5.5
D	Spiral outer dimension	Meter	10e-3
W	Conductor width	Meter	0.5e-3
S	Spacing between turns	Meter	0.2e-3
HA	Height of air bridge	Meter	3.0e-6
WA	Width of air bridge	Meter	10e-6
SG	Distance to ground plane	Meter	0.5e-6
T	Conductor thickness	Meter	Substrate Metallization
RB	Bulk resistivity	m-Ohm/cm	Substrate Metallization

Netlist Example

A2 Port1 Port2 D=6e-3 N=3 W=0.3e-3 S=0.3e-3 HA=0.11e-3 WA=0.21e-3 SG=2e-3 COMPONENT=gcpwreci SUBSTRATE=GCPW1

where GCPW1, the selected layout technology or substrate type, has a definition such as:

.SUB GCPW1 GCPW(
+ H=0.001524 Er=4.4 TAND=0.02 HU=2.54E-4
+ MET1=1.724137931034483 T1=2.54e-5 RGH=0)

Notes

1. This model is not recommended beyond the first resonant frequency.

2. The model is restricted to a square GCPW spiral.

3. An error occurs if the size of the inductor cannot accomodate the specified number of turns.

4. The number of turns N has to be an integer multiple of half a turn, i.e., 0.5, 1, 1.5, …
