Coupled Lines, Electrical Length

Coupled Lines, Electrical Length

Netlist Form

An ideal coupled line, electrical length instance has the following netlist syntax:

Axxx n1 n4 n2 n3 [E=val] [ZE=val] [ZO=val]
[AE=val] [AO=val] [F=val] COMPONENT=cple

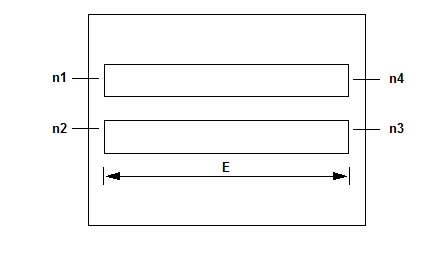

n1 and n2 are the names of the input nodes. n4 and n3 are the corresponding output nodes. The entry COMPONENT=cple identifies the element as an ideal coupled line, electrical length.

**Ideal Coupled Line, Electrical Length,**
**Instance Parameters**
Parameter	Description	Units	Default
E	Electrical length	Degree	45
ZE	Even mode impedance	Ohm	50
ZO	Odd mode impedance (the second character is the letter O, not the numeral zero)	Ohm	50
AE	Even mode attenuation	dB/m	0.0
AO	Odd mode attenuation (the second character is the letter O, not the numeral zero)	dB/m	0.0
F	Reference frequency for AE and AO	Hertz	1e9

Netlist Example

A3 Port1 Port4 net_27 0 E=55
+ AE=0.1 F=1.25e9 COMPONENT=cple
