   Bipolar Transistor Instance, VBIC99 (Level 9)

Bipolar Transistor Instance, VBIC99 (Level 9)



VBIC99 BJT Instance Netlist Syntax

The syntax for a Level 9 VBIC99 model BJT instance is:

Qxxxx nc nb ne [ns] [nt] modelname

[AREA=val] [M=val] [DTEMP=val] [TNODEOUT]

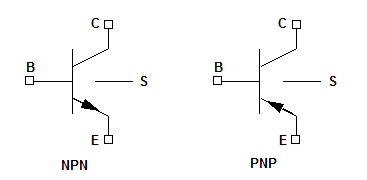

nc is the collector node, nb is the base node, ne is the emitter node, ns is the substrate node, and nt is the self-heating node of the transistor. The modelname is the name of a Level 9 BJT model defined in a .MODEL statement elsewhere in the netlist. The TNODEOUT flag indicates that node nt is present but node ns is not present.




Level 9 VBIC99 BJT Instance Parameters

Instance Parameter

Description

Unit

Default

AREA

Emitter area factor for currents, resistances, and capacitances

None

1.0

DTEMP

Difference between capacitor and circuit temperatures

°C

0

M

Multiplier: simulates parallel devices

None

1.0

VBIC99 BJT Instance Netlist Examples

Q15 3 4 5 6 bjtvbic99 DTEMP=20
