   Harmonic Balance Analysis Outputs


Harmonic Balance Analysis Outputs

Results are available in the spectral domain and in the time domain.

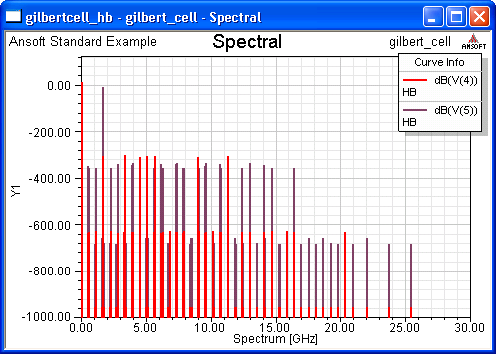

Spectral domain results look like the following:

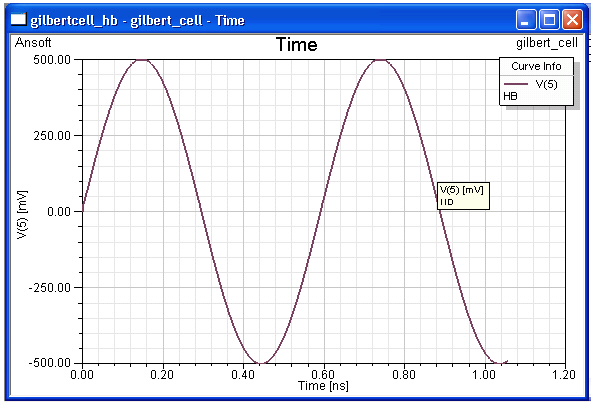

Time domain results look like the following graph:

For details on creating and modifying reports, see Generating Reports and Postprocessing.
