Adding a Compiled DLL

Follow this procedure to add a compiled DLL as a component model that can be instantiated in a Nexxim schematic.

1. Open a new Circuit Design. Expand the Definitions folder, right-click on the Models folder, and select Edit Library:

2. The Edit Libraries dialog opens. Click Add Model.

3. The Add Model dialog opens:

•  Enter a name for your model, and select C Model as the Model type. Click OK.

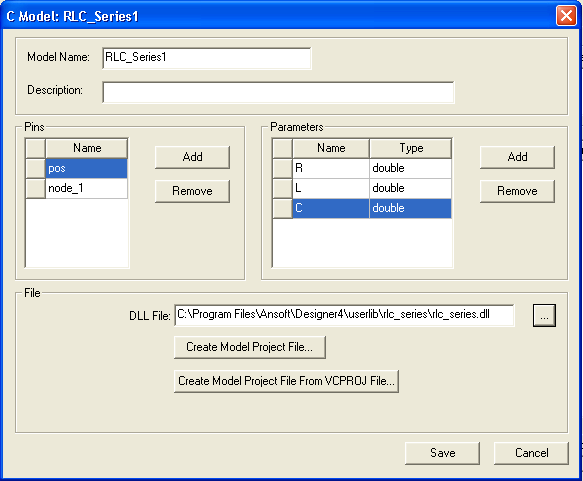

4. The C Model dialog opens:

•  The Model Name appears as you entered in the previous dialog.

•  Use the Pins and Parameters fields to enter the names of the pins and parameters as they appear in the DLL.

•  Enter the name and path to the DLL file. If desired, use the browse button (...) to locate the DLL file from a File Open dialog.

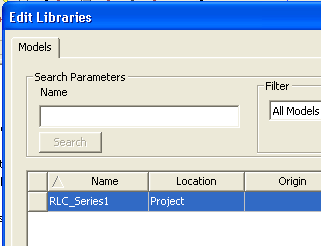

•  Click Save. The new model appears on the Edit Libraries dialog:

•  Click OK to close the Edit Libraries dialog. The new model is listed in the Models folder:

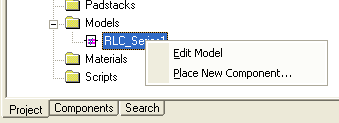

5. Right-click on the new model icon, and select Place New Component from the menu:

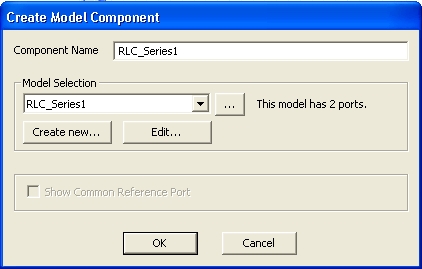

6. The Create New Component dialog opens:

•  Click Create New to create another new model, or click Edit to edit this model before creating any components.

•  Click OK to add the new component and close the Create Model Component dialog. The new component is added to the Components list in the project tree:

7. Select and place this component as you would any Nexxim component. Enter values for the parameters. User Browse Netlist to verify that the component is generating a correct netlist for Nexxim.
