Adding Existing C Code

Follow this procedure to add a existing C code modules as a component model that can be instantiated in a Nexxim schematic.

1. Using a text editor, create a Model Project File that lists the C code modules to be added. See C Model Project Files for information on the Model Project File format. The Model Project File has a .dcp extension.

2. Open a new Circuit Design. Expand the Definitions folder, right-click on the Models folder, and select Edit Library.

3. The Edit Libraries dialog opens. Click Add Model.

4. The Add Model dialog opens.

•  Enter a name for your model, and select C Model as the Model type. Click OK.

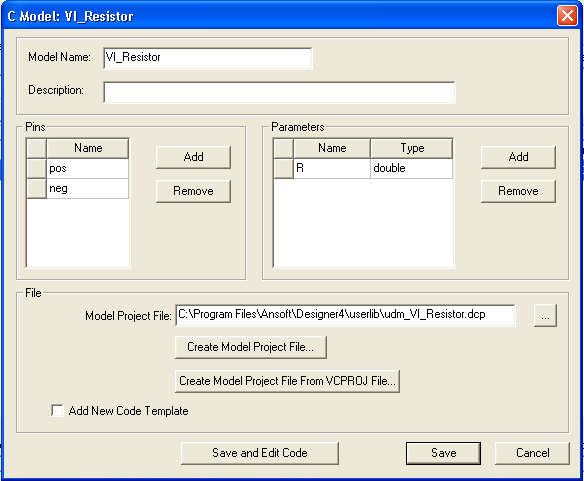

5. The C Model dialog opens:

•  The Model Name appears as you entered in the previous dialog.

•  Use the Pins and Parameters fields to enter the names of the pins and parameters as they appear in the C model code.

•  Enter the name and path to the Model Project (.dcp) file. If desired, use the browse button (...) to locate the .dcp file from a File Open dialog.

•  Click Save and Edit Code.

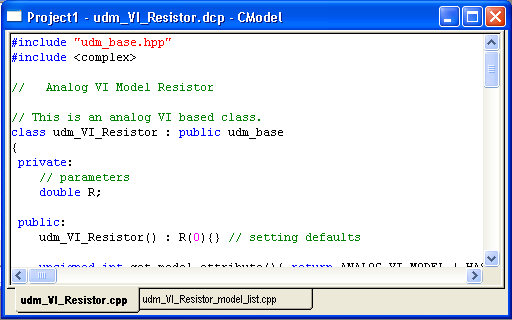

6. The Model List File and the C code module files are displayed in the design area:

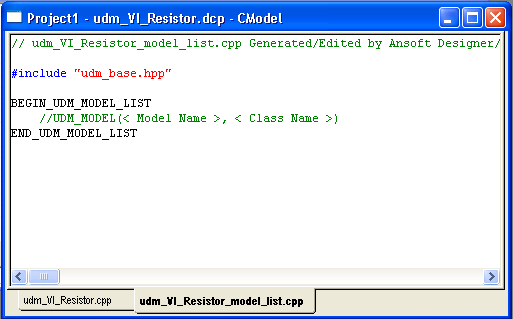

Initially, the Model List file is blank:

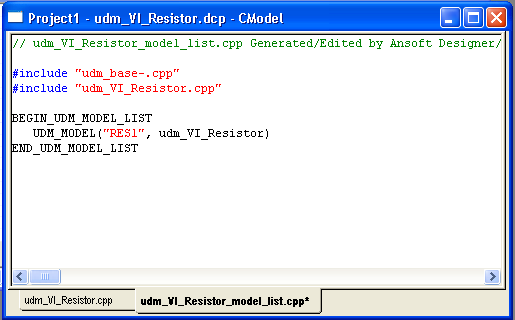

Fill in the file with the names of the code modules:

•  Under C Model Editor in the top menu bar, click Save model_list_filename.

7. Complete the C code, and select Build in the C Model Editor menu. If you have Visual C installed, the DLL will be built.

8. The new model is listed in the Models folder

9. Right-click on the new model icon, and select Place New Component from the menu.

10. The Create New Component dialog opens:

•  Click Create New to create another new model, or click Edit to edit this model before creating any components.

•  Click OK to add the new component and close the Create Model Component dialog. The new component is added to the Components list in the project tree:

•  Select and place this component as you would any Nexxim component. Enter values for the parameters. User Browse Netlist to verify that the component is generating a correct netlist for Nexxim.
