       Open the Loadpull Schematic

Open the Loadpull Schematic

Open the Loadpull Schematic project from its file in the Examples directory.

1. On the File menu, select Open Examples. The File Open window appears.

2. Open the RF_Circuit directory, then the Amplifiers directory, then select the file Nexxim_Load_Pull_Schematic.adsn. Click Open.

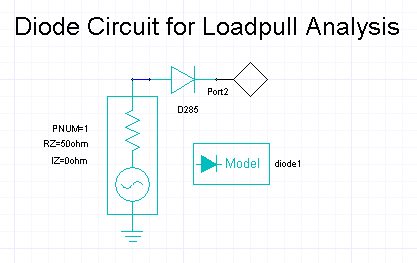

The schematic appears in the design window:
