       Searching for and Replacing Text

Searching for and Replacing Text

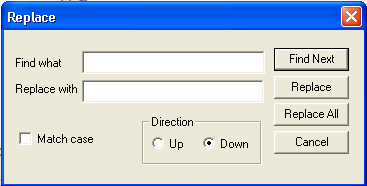

To search for a text item and replace it with new text, select Edit > Replace or press Ctrl+r. Either of these operations opens the Replace dialog box:

1. Enter the search text in the Find what field.

2. Enter the replacement text in the Replace with field.

3. Select the Direction for the search. Up searches from the cursor toward the front of the netlist, wrapping from the front to the back if the text is not found. Down searches from the cursor toward the back of the netlist, wrapping from back to front is the text is not found.

4. Toggle Match case to enable case-sensitive text matching.

5. To find and replace text item-by-item, click the Find Next button to start the search. When the next instance of the search text is highlighted, click Replace to replace the search text with the replacement text, or click Find Next again to leave the instance unchanged. Repeat this step until all replacements have been made.

6. To replace all instances of the search text with the replacement text globally, click the Replace All button.

7. When all replacements have been made, click the Cancel button to close the Replace dialog box.
