Network Data Explorer >
Exporting Data from NdExplorer >
Export SYZ Data

Export SYZ Data

The active data set may be saved as a touchstone file (under a name different to the original) with the File > Export SYZ Data command. At the time of export, you can select from the following options:

• Precision

• Type of data

• NPort model

• Renormalize data

Touchstone Export

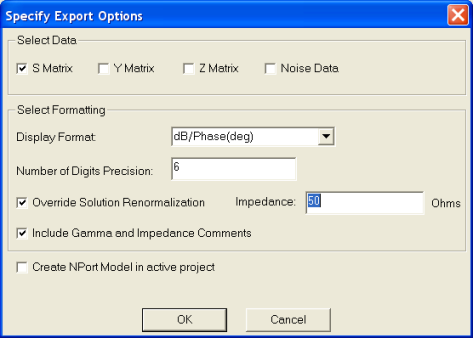

After clicking File > Export SYZ Data and specifying a file name and Touchstone format (*.sNp) in the Save File As dialog, the Specify Export Options dialog opens:

You are then able to:

• Select the data

• Select the display format

• Enter the precision

• Reference Impedance to renormalize

• Include impedance comment

• Create NPort model

NMF Export

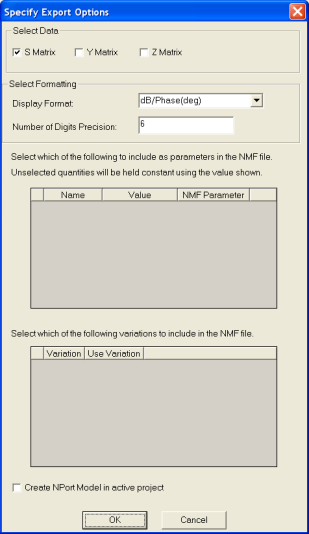

After clicking File > Export SYZ Data and specifying a file name and the NMF format (*.nmf) in the Save File As dialog, the Specify Export Options dialog opens:

You are then able to:

• Select the data

• Select the display format

• Enter the precision

• Select/unselect the listed parameters

• Select the variations

• Create NPort model

Spreadsheet, Matlab, and Citifle Export

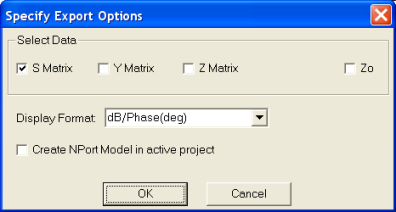

After clicking File > Export SYZ Data and specifying a file name and the format — Spreadsheet (*.tab), Matlab( *.m), or Citifile(*.cit) — in the Save File As dialog, the Specify Export Options dialog opens:

You are then able to:

• Select the data

• Select the display format

• Create NPort model
