Ansoft Designer / Ansys Designer 在线帮助文档：

Network Data Explorer >
   Viewing Data and Modifying the Display >
       Displaying a Graph of a Cell Across All Frequencies

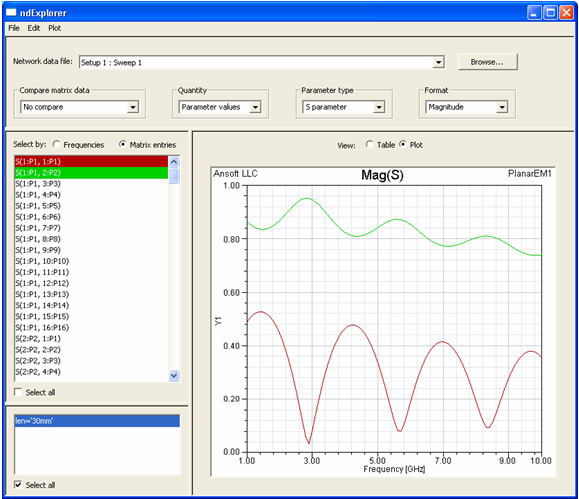

Displaying a Graph of a Cell Across All Frequencies

1. Select Parameter values in the Quantity control field.

2. Select Matrix entries in the data selection pane at left.

3. Select Plot in the data view pane at right.

4. Choose the cells and variations to display.

5. Select Plot > Log Frequency to switch the X axis to a log scale.



[spacer]



• The standard "view" right click menu options are available: zoom, pan, fit-all, visibility, etc. A right click Copy Image is also available; the resulting image may be pasted into external documents.

• Holding the cursor over a trace will provide an identifying tool-tip; in the case of multiple variations this is the only way to distinguish between the curves for a particular cell.

• Selecting Table in the data view pane, switches the view to a tabular view of the plot data.
