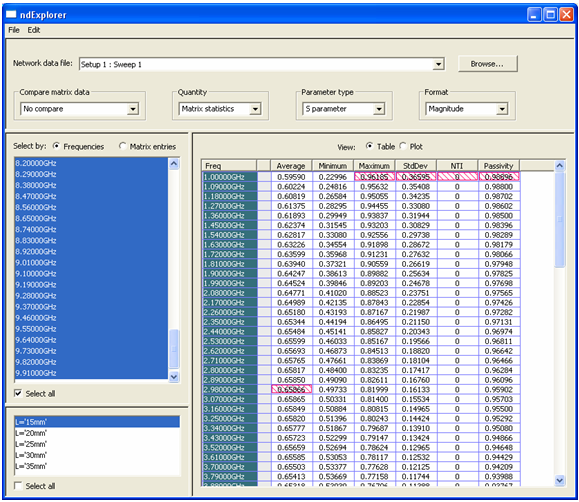

Network Data Explorer > Displaying Statistics by Frequency1. Select Matrix statistics in the Quantity control field. 2. Select Frequencies in the data selection pane at left. 3. Select Table in the data view pane at right. 4. Choose the frequencies and variations to display.
![[spacer]](1p.gif){kind=small}
• The various statistical measures for the current Parameter type and Format are displayed for each frequency selected. Only real (not complex) data formats are offered for statistical analysis. Passivity is only available for S-parameter data (comparisons inactive). NTI refers to the number of trivial items; for S-parameters, this includes all zeros and ones; for all other data (and data comparisons), only zeros are counted as trivial. The minimum value for each column is highlighted in blue; the maximum is highlighted with red. • When the cursor is placed over a cell, tool-tip text indicates the frequency and statistics displayed. Clicking a cell selects the cell. Multiple variations are displayed as separate entries in the table; use the tool-tip to identify the variation for a particular frequency. • Clicking a column header sorts the data using that column for comparison; clicking again reverses the order of the sort.
