Network Data Explorer >
Viewing Data and Modifying the Display >
Displaying Individual Statistics for All Frequencies

Displaying Individual Statistics for All Frequencies

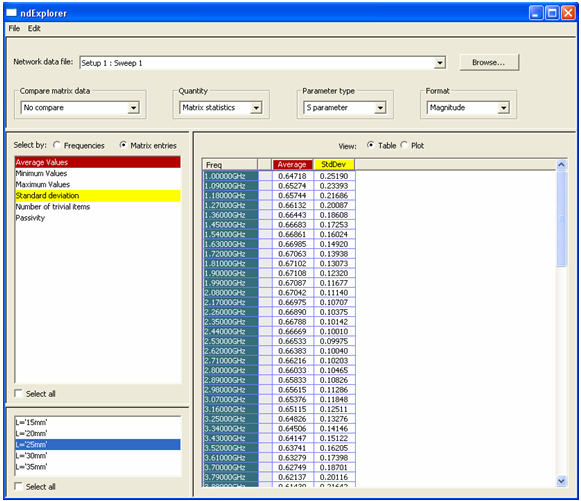

1. Select Matrix statistics in the Quantity control field.

2. Select Matrix entries in the data selection pane at left.

3. Select Table in the data view pane at right.

4. Choose the statistics and variations to display.

• The various statistical measures (for the current Parameter type and Format) are displayed for all frequencies. Passivity is only available for S-parameters (comparisons inactive). NTI refers to the number of trivial items; for S-parameters, this includes all zeros and ones; for all other data (and data comparisons), only zeros are counted as trivial.

• When the cursor is placed over a cell, tool-tip text indicates the frequency and statistics displayed. Clicking a cell selects the cell. Multiple variations are displayed as separate entries in the table; use the tool-tip to identify the variation for a particular frequency.

• Selecting Plot in the data view pane, switches the view to a graph of the statistical data. The graph shares the same color coding as the columns; highlighted columns are highlighted in the plot.
