Comparing Network Data

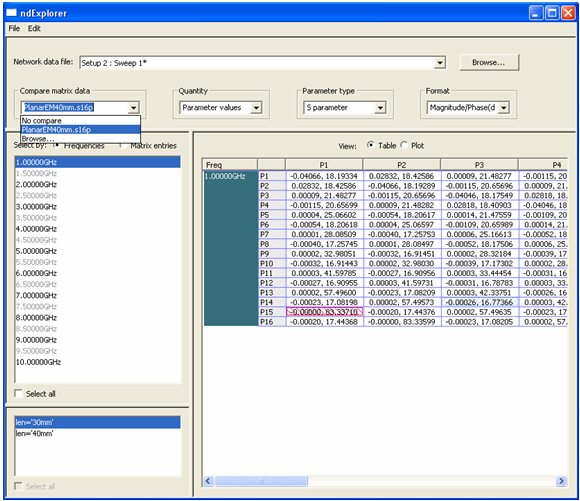

1. Select Browse in the Compare matrix data control field or the Compare menu option on the File menu.

2. Load a network data file to be compared with the currently active data. Multiple files may be opened from the file browser dialog, however, only one file is compared against the primary data set at any given time.

• The data displayed in all views is now of the primary Network data less the values for the compare data set. The data format (magnitude, dB, etc.) is applied either before (pre) or after (post) the subtraction depending on the corresponding setting in the Display format settings dialog (available on the Edit menu or the right-click context menu).

• Multiple data-sets can be loaded for comparison though only one is active at any one time. The compare data set may be changed by using the Compare matrix data control field; comparisons may also be turned off by selecting No compare.

• The primary data source may be changed using the Network data file drop-down list within the control pane. By so doing, a comparison data set may be made the primary data set, either for viewing as is, or for comparing with other network data.

• The Compare matrix data dialog, accessed through the Select Compare Variations menu option, may also be used to switch comparison data sets. When a comparison is active, the data sets are restricted to one variation. The variation selected in the variation list box applies to the primary data source alone, i.e. the one displayed in the Network data file field of the control pane.
