Terminals Tab

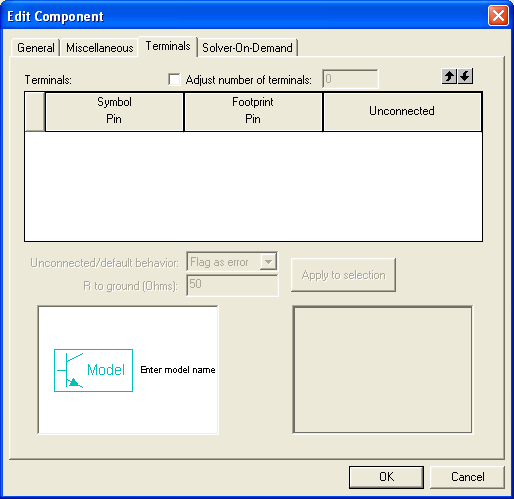

To line up component terminals in an envisioned order, use the Terminals tab to associate each symbol pin with the proper terminal by first ordering the symbol pins and then selecting the corresponding symbol. This allows you to visually associate the symbol pins with the netlist properties for the simulation model. The symbol and footprint preview windows at the bottom of the dialog are automatically updated to reflect whatever changes you make to the symbols and footprints you modify.

Adjust number of terminals — Allows you to manually create terminals. When checked, this option enables the adjacent window immediately to the right, where you can specify the number of terminals to manually create. Note that the number of terminals you enter must be greater or equal to the number of symbol/footprint pins in the component, otherwise a warning message is displayed.

In the Terminals display window, you can select one or more terminals directly, which then enables the following dialog options:

Unconnected/default behavior — Used to specify the response when a pin is not connected to a wire or port in a schematic. You can choose between the following pull-down menu actions: No action (default), Flag as error, and Grounded. Click Apply to selection to apply your changes to the selected terminals.

R to Ground — If you select Grounded for the Unconnected/default behavior, you can then specify the resistance to ground within the R to Ground entry window. Click Apply to selection to apply your changes to the selected terminals.

Click OK to save your changes and close the dialog, or click Cancel to close the dialog without saving any changes.
