Ansoft Designer / Ansys Designer 在线帮助文档:


Layout Editor User Guide >
Using the 3D Viewer >
   Setting Object Visibility


Setting Object Visibility

1. Change the view of the model to 3D: On the EM Design menu, click 3D Viewer.

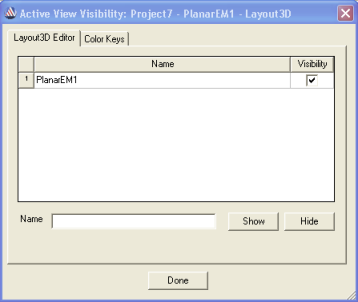

2. On the View menu, point to Active View Visibility. The Active View Visibility window appears:

3. The panel lists the designs in the current 3D viewer. Deselect the checkbox for a design to remove it from the view (the design is not deleted from the project).

4. For projects with many designs, enter the name of a design in the Name field, then use the Show and Hide buttons to control the visibility.

5. When the visibility settings are as desired, click Done to close the window.
