Ansoft Designer / Ansys Designer 在线帮助文档：

Importing and Exporting Data >
Importing Data >
Including a Netlist File

Including a Netlist File

To include a netlist file in the analysis of a circuit:

1. Select the schematic that will include the circuit file.

2. Do either of the following:

• On the Product menu, point to Add Reference Data, and then click Add Netlist File.

• Right-click the design’s Data icon in the project window, and then click Add Netlist File.

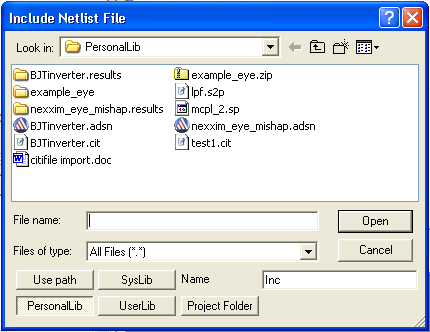

The Include Netlist File dialog box opens.

3. In the Name box, enter a name for this Include object (or accept the default name shown).

4. Specify a location for the file by clicking Use Path, PersonalLib, UserLib, or SysLib.

Note

The PersonalLib (personal library) folder is located at <Project Directory>/PersonalLib; the userlib (user library) folder is located at <Installation Directory>/userlib; and the syslib (system library) folder is located at <Installation Directory>/syslib, where <Project Directory> is the location you specified for your Designer projects, and <Installation Directory> is the directory into which Designer was installed during setup.

5. Within the PersonalLib, UserLib, or SysLib folder, select the file from those listed, or type the name of the file in the File Name box. Note that SysLib is reserved for libraries supplied with Designer.

If you select Use path, type the name of the file in the File Name box, or use the Look in field to navigate to the file and record its name. Note that components or libraries imported with Use Path may not be portable when the project is moved to another machine.

When the In project folder button is selected, references to the file in the design are relative to the directory where the project resides. In this case, the path is saved in the project .adsn file as a variable such as:

.lib '$PROJECTDIR/x_113854.lib'

The variable $PROJECTDIR will be expanded to the current location of the project when the design is converted to a netlist and run by an analysis tool. Otherwise, an absolute path is saved. If you move a project and its library files together to a new directory, you can preserve the file references by selecting the Project Folder option.
