       Exporting Graphics Files from the Layout 3D Editor


Exporting Graphics Files from the Layout 3D Editor

You can export the following graphics formats from the 3D layout editor:

[spacer]

To export a file to a graphics format:

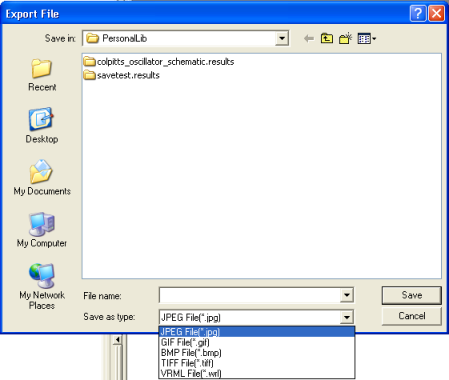

1. On the Edit 3D menu, click Export to save the file in a graphics format. The Export File dialog opens:

2. Use the file browser to find the directory where you want to save the file.

3. Type the name of the file in the File name box.

4. Select the desired graphics file format from the Save as type pull-down list.

5. Click Save. The file is exported to the specified location as a graphics file.
