Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
System Design >
Set up the System Design

Set up the System Design

To begin, follow these steps:

1. To start Designer, from the Designer desktop, On the File menu, click New.

2. On the Project menu, click Insert System Design.

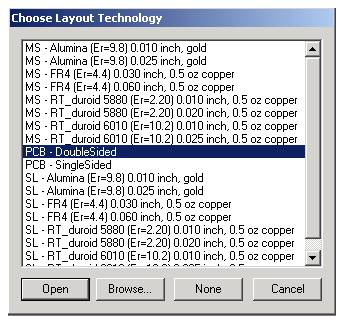

3. The Choose Layout Technology dialog box opens. Select PCB - DoubleSided and then click Open.

A new, empty schematic, associated with PCB DoubleSided technology, opens in the Designer schematic editor.

Note

To open a new schematic that is not associated with the set of definitions that come with a technology file, you can click None rather than selecting a technology. This is useful for basic concept designs that do not contain manufacturing or substrate information.
