Set Up a Time-Domain Analysis

Set Up a Time-Domain Analysis

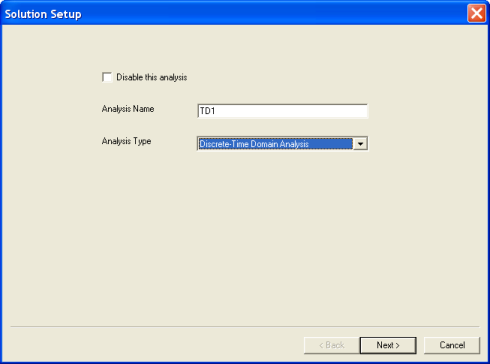

1. On the System menu, or by right-clicking Analysis in the Project Manager, select Add Solution Setup, which brings up the Solution Setup dialog.

2. Select Frequency Domain Analysis from the pulldown menu and then click Next.

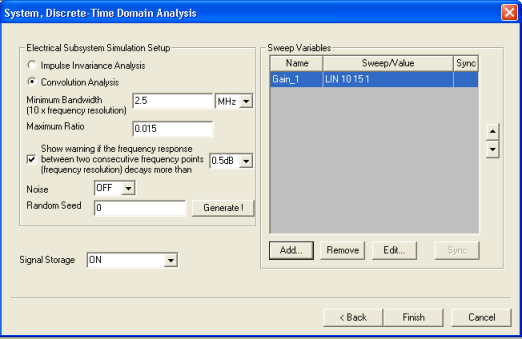

The System, Discrete-Time Domain Analysis dialog box appears:

3. Select Convolution Analysis.

4. Set Minimum Bandwidth to 2.5 MHz and Maximum Ratio to .015, as shown.

5. To set the Sweep Variables: Click Add, and the Add/Edit Sweep dialog box appears.

6. In the Variable list, select Gain_1.

7. Select Linear Step and enter, 10, 15, and 1 in the Start, Stop, and Step fields. Click Add.

8. Click OK and then click Finish to close the Add/Edit Sweep and System, Discrete-Time Domain Analysis dialog boxes.
