Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
System Design >
Frequency Domain Analysis >
Set Up a Frequency Domain Analysis

Set Up a Frequency Domain Analysis

To set up the frequency-domain solution:

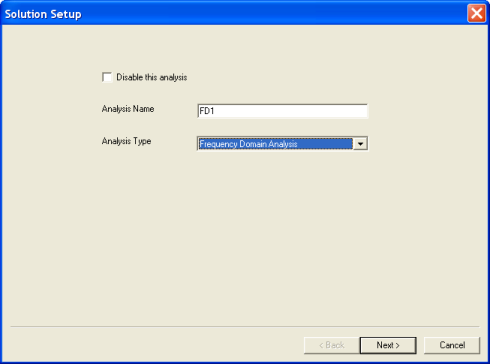

1. On the System menu, or by right-clicking Analysis in the Project Manager, select Add Solution Setup, which brings up the Solution Setup dialog.

2. Select Frequency Domain Analysis from the pulldown menu and then click Next.

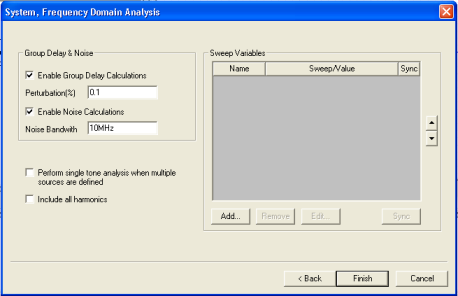

The System, Frequency Domain Analysis dialog box appears:

3. Make sure that Enable Group Delay Calculations and Enable Noise Calculations are selected.

4. Set Perturbation (%) to 0.01

5. Set Noise Bandwidth to 10MHz.

6. Make sure the Include all harmonics check box is deselected (off). This option is off by default.

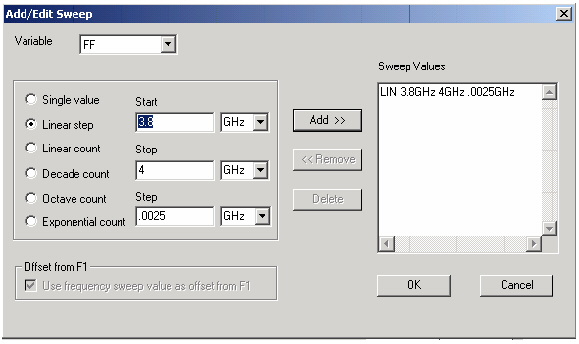

7. In the Sweep variables panel, click Add and the Add/Edit Sweep dialog box appears:

8. In the Variable list, select FF.

9. Select Linear Step and enter 3.8 GHz for Start, 4 GHz for Stop, and .0025 GHz for Step. (Make sure that the units are set to GHz).

10. Click Add and then click OK to close the Add/Edit Sweep dialog box.

11. Click Finish to close the System, Frequency Domain Analysis dialog box.
