Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
System Design >
Place the Components in the Schematic >
Place the Transmission Lines

Place the Transmission Lines

Next, place three transmission lines.

1. In the Project Manager window Components tab, expand Ideal Distributed under System Elements and select TRLK: Transmission Line, Physical Length.

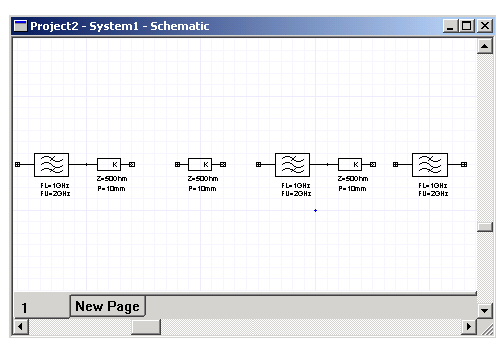

2. Using any of the techniques described earlier, place three instances of the transmission line, as shown below. At this point your schematic should look similar to the following:
