Edit Filter Properties

Define the parameters for the three filters. Identify them as Filter1, Filter2, and Filter3, ordered from left to right.

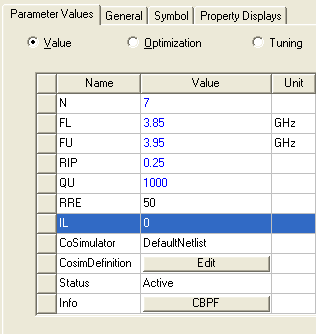

1. Double-click the schematic symbol for Filter1, and the Properties dialog box appears.

2. Enter new values for N, FL, FU, RIP, and QU as shown, leaving the other property values unchanged. If a property has units, you can enter the units along with the value in the Value column, for example, 3.8GHz. Or enter the units in the Unit column. Press Enter after each new value has been entered to move to the next line.



Note

To display additional information about this component (for example, model notes and netlist syntax) click the CBPF button and the Designer Help window opens. For more information about the Designer online help system, see Using the Online Help System.



3. Using the same procedure, enter the following new property values for Filter2 and Filter3:

[spacer]

Name

Filter2 Value

Filter3 Value

N

5

5

FL

1.15GHz

0.25GHz

FU

1.25GHz

0.35GHz

RIP

0.2

0.2

QU

1000

1000
