The File Pulldown Menu

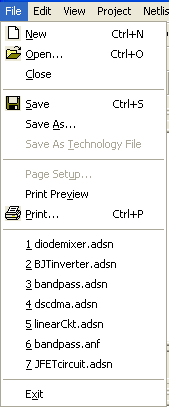

The File pulldown menu items are common operations on files and projects.

• Click New (or type n) to set up a new project. When the project icon appears in the Project Manager window, use the Project pulldown menu to open a new design.

• Click Open (or type o) to open an existing project. The File Open window appears. Browse to the directory containing the project file, select the file, and then click OK.

• Click Close (or type c) to close the selected project. If the project has changed since the last save, you will be prompted to save the project before closing.

• Click Save (or type s) to save the selected project.

• Click Save As (or type a) to save the selected project under a different name or in a different directory.

• Click Save As Technology File (or type t) to save the selected top-level design as a technology file (*.asty). A dialog box opens, allowing you to specify a directory and file name in which to save the design. You must have a design selected to activate this menu item. You cannot export a technology file from a project or from a subcircuit.

• Click Page Setup (or type u) to set up formatting to print the active window in the Design Area. The setup includes formatting such as borders and labels that is specific to the editor (Schematic, Layout, etc.) in the active window.

• Click Print Preview (or type v) to display a preview of the print job.

• Click Print (or type p) to print the active window.

• Click on the name of a project (or type its number) to open a project from the listing of recently-opened projects.

• Click Exit (or type x) to exit Designer. If any project has unsaved changes, you will be prompted to save the project before closing.
