The Components Tab

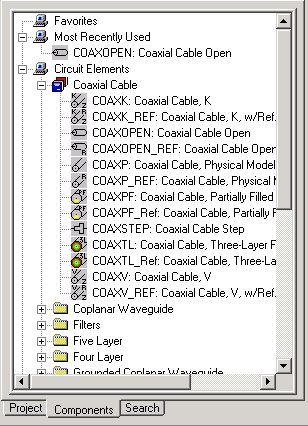

The Components tab near the bottom of the Project Manager window of the Designer Desktop allows you to browse and select schematic components to place. It appears when a design has been opened. The Components are grouped by component function. For example, the Circuit Elements library has a number of categories and the set of coaxial cable components is expanded:

To help facilitate the easy copying of design materials, Designer allows you to drag and drop designs, components, and models from the Project Manager window to the Schematic Editor. In particular, in the Components tab of the Project Manager window, you can select and drag a component directly to a schematic.

Note

You can drag and drop one or more copies of a model from the Components and Models folders in the project tree to a schematic. Alternately, you can select Copy from the Project tree right-click menu and then select Paste from the schematic right-click menu (or use the Ctrl-c and Ctrl-v keyboard commands).

If Multiple Placement is turned on for components in Designer’s Schematic Options dialog box, you can place multiple instances of a component in the schematic by clicking at multiple locations. To stop placing components during multiple placement, do either of the following:

• Press ENTER, the SPACEBAR, BACKSPACE, or ESC on your keyboard.

• Right-click, and then select Place and Finish, Finish, Cancel, or Back.

The topics for this section include:
