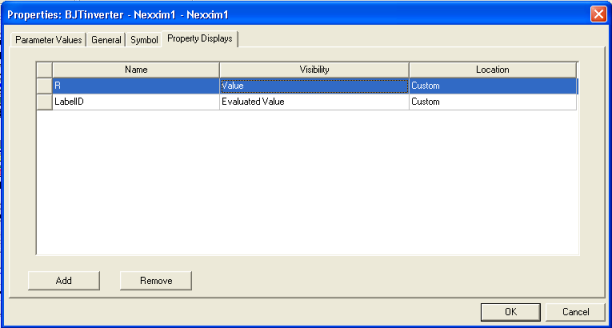

The Designer Desktop > Property Displays TabThe Property Displays tab in the Properties Dialog Box controls how the properties of the component appear on the schematic.
Click in the Visibility field for a parameter to select how the information for that parameter is displayed: • None results in no label being shown. • Name displays the parameter name, e.g., R. • Value displays the component value, which can be a single value (e.g. 10000) or an expression (e.g., 10000*5). • Both displays the parameter name and its value, e.g., R = 10000 or R=10000*5. • Evaluated Value displays the evaluated value of an expression that has been used for the value of a parameter, e.g., 50000 for the expression 10000*5. • Evaluated Both displays the parameter name and the Evaluated Value, e.g., R = 50000 for the expression 10000*5. Click in the Location field for a parameter to specify the location for the display. The locations are: Left, Top, Right, Bottom, Center. When you have set the location with the cursor in the schematic, the Location field has the entry Custom. To add a parameter to the display, click the Add button. Left-click on the Name field and select the parameter to add from the pulldown. To delete a parameter from the display, select it in the Property Display list and click the Remove button.
