3D Layout Viewer View Menu

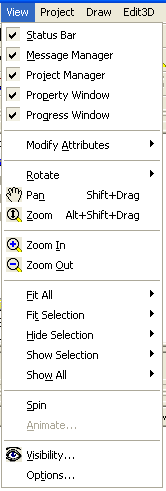

The following View pulldown menu appears when the 3D Layout Viewer is the active window:

• The checkboxes select/deselect the display of the Status Bar, Message Manager Window, Project Manager, Property Window, and Progress Window. When a box is checked, the corresponding window is displayed. Click on a checkmark to deselect the display of that Designer window. Click again to toggle the display on.

• Refer to the 3D Layout Viewer topic for details on Modify Attributes, Rotate, Zoom, Hide/Show, Spin, Visibility, and Options.
