Ansoft Designer / Ansys Designer 在线帮助文档：

Dynamic Links and Solver On Demand >
Solver On Demand >
Selecting a Model for an Individual Component

Selecting a Model for an Individual Component

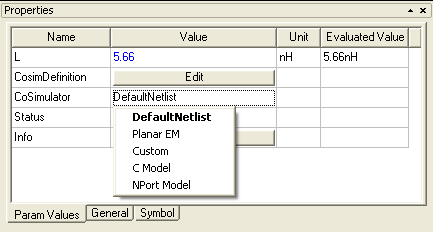

The Solver On Demand model type can be defined for each individual component in the schematic. Initially, the default solver, DefaultNetlist, applies to all components. To specify a different solver for a component, select the component in the Schematic Editor. The properties for that component are then displayed in the Property window. Scroll down to the CoSimulator property:

Click in the Value field to open the pulldown menu. The pulldown shows all the models that have been defined for this type of component. Click on a model to select it and close the pulldown. Repeat this process for all components that will use Solver On Demand models other than the DefaultNetlist.

For more information about selecting and editing component properties, see Using the Component Editor.
