Deembedding Wizard >
   Short-Open-Load-Thru Method


Short-Open-Load-Thru Method

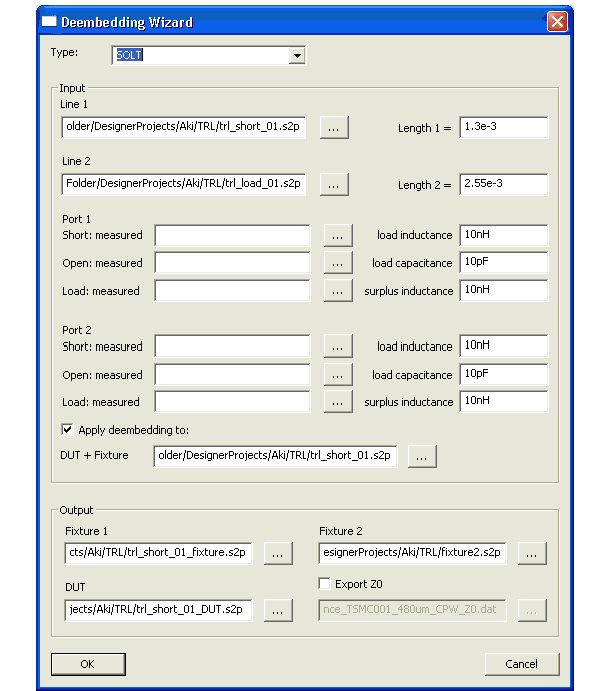

To implement the Short-Open-Load-Thru method (SOLT), select Tools > Deembedding Wizard to open the wizard dialog. Then select “SOLT” from the Type pulldown menu.

[spacer]



The "Short-Open-Load-Thru" calibration method removes the effect of the probe discontinuities from a device under test and does not assume the port 1 and port 2 are equal.



The required input is:

1. One Touchstone file (*.s2p) of a thru-line of any length.

2. The reflect measurements can either be of two single ended measurements (two *.s1p) or one combined measurement (one *.s2p):

•  For a short or matched measurement, the surplus inductance needs to be specified.

•  For an open circuit reflection, the excess capacitance needs to be specified.

•  If no value is given, an ideal reflect is assumed.

3. A Touchstone file (*.s2p) of the desired device under test with fixture effects.



The output is:

1. A Touchstone file of the fixture.

2. A Touchstone file of the device under test with effect of the fixtures removed.
